Blood Collection Tube Machine Automatic Production Line Overall Solution Provider.

Blood Culture Flask Production Machine Wholesale - HONGREAT-1 1
Blood Culture Flask Production Machine Wholesale - HONGREAT-1 2
Blood Culture Flask Production Machine Wholesale - HONGREAT-1 1
Blood Culture Flask Production Machine Wholesale - HONGREAT-1 2

Blood Culture Flask Production Machine Wholesale - HONGREAT-1

Inquiry
Send your inquiry

Company Advantages

· blood culture flask production machine has reliable quality, refined and beautiful appearance and long service life.

· This product is superior to other products because of its excellent performance, durability and other characteristics.

· Hunan Hongreat Automation Equipment Co., Ltd. always provides maximum support to customers to achieve win-win collaboration.

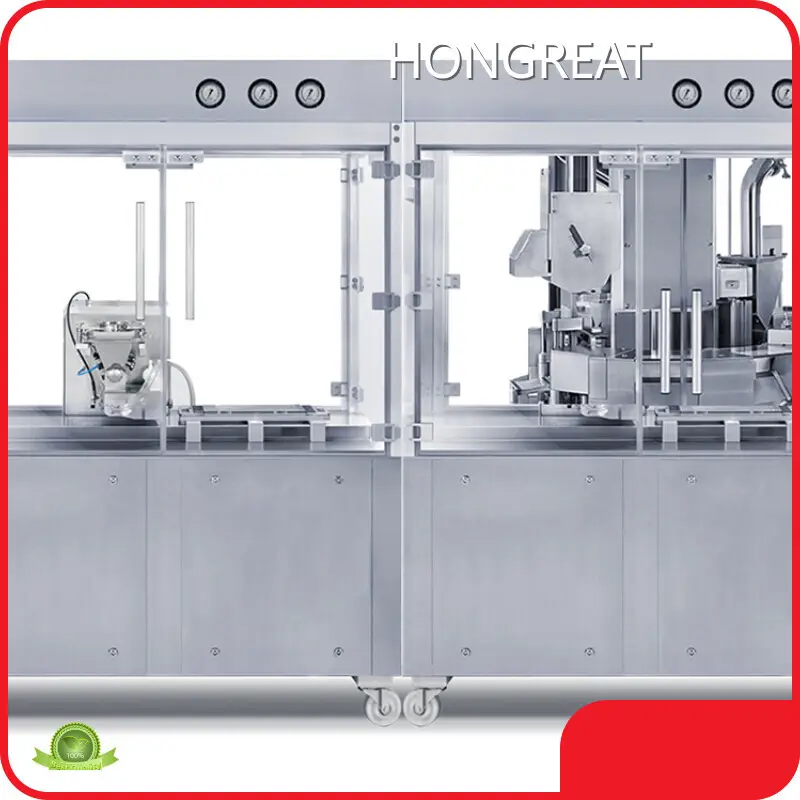

Blood Culture Bottle Automatic Assembly Production Machine

Main Technical Parameters

Bottles sorting

• Sorting bottles to the next station

Resin filling (3*5 nozzles)

• 3*5 nozzles, 5pcs every time

Filling volume tolerance: 4±0.4g

Culture medium filling (6 sets

Peristaltic pump)

Filling volume: 35ml±0.1mL

• With 6 pump

• Medium tank volume: 30L

Automatic gas-filling, vacuuming &

rubber adding (16 heads, with vibration bowl feeding)

• Automatic gas-filling & rubber adding

• Rubber to be sorted by vibration bowl

• Vacuum: -95kpa

Vacuum tolerance: ±5% (not include bottle itself tolerance);

• Number of times for gas-filling can be set on touch screen

Capping (with vibration bowl feeding)

• Cap to be sorted by vibration bowl

Work Flow

Tube loading -- Reverse tube detection -- Chemical filling (cell-free DNA/RNA liquid solution) -- Cap adding -- Vacuuming -- Test tube labeling (automatic removal for empty tube) --Packing (loading into foam tray) -- Sealing and shrink packing -- Finished product.

DNA TUBE MACHINE

Our advantage

• Precision ceramic syringe pump for chemical filling, 10 nozzle. Volume can be adjusted on screen.

• Vacuum-assisted cap picking: capping unit + vacuum suction. Different from traditional plunger type cap picking method, avoid cap missing due to plunger wear, stability and reliability can reach 99.99%, more stable and durable.

Comparison of Vacuum Chamber

HONGREAT

Other Pump

Blood Culture Flask Production Machine Wholesale - HONGREAT-1 4

Blood Culture Flask Production Machine Wholesale - HONGREAT-1 5

• All-stainless steel integrated vacuum chamber to ensure no leakage for the vacuum, the service life exceeds 10 years.

Others use aluminum alloy spliced vacuum chamber, vacuum leaks after 2 years usage.

more than 20 years experience in manufacturing vacuum blood collection tube automatic production lines.

logo1_39
8,000+
More than 8,000 square meters
Has 3 factories with a total area of more than 8,000 square meters production plant.
logo1_32
230+
230 clients
Already supported over 230 clients for their BCT production projects in 39 countries.
logo1_45
18+
18 patents
We have more than 18 patents in blood collection equipment.

Comparison of Vacuum Chamber

图片 3 (6)
HONGREAT
All-stainless steel integrated vacuum chamber to ensure no leakage for the vacuum, the service life exceeds 10 years.
图片 4 (4)
Others
Others use aluminum alloy spliced vacuum chamber, vacuum leaks after 2 years usage.

Comparison of Numerical Control Vacuum System & Proportional Valve Vacuum System

图片 5 - 副本 拷贝
HONGREAT (SMC numerical control vacuum system)
• HONGREAT digital vacuum system, adjustable in units of Hpa, which is 10 times the accuracy of other vacuum systems. • Applied with SMC Japan vacuum sensor and control system. • HONGREAT digital vacuum system is stable and reliable after more than 10 years of verification and operation test.
图片 5 拷贝
Others
• Choose old, low-cost proportional valve vacuum control system, accuracy cannot be guaranteed after aging.

fAQ

1
What is the warranty for your full automatic blood collection tube machines?
12 month machine warranty (except vulnerable parts). Warranty time is based on goods receiving date or signing date of receipt form.
2
Is pre-setting function for production related parameters available?
Yes, available.
3
Can you make password protection for parameter setting for the machine, to avoid mis-operation?
Yes, we can do customization for your machine.
4
Do you provide machine onsite installation?
Yes, we provide on-site machine installation and debugging service.


Company Features

· For years, Hunan Hongreat Automation Equipment Co., Ltd. has been making the purchasing of blood culture flask production machine easy and convenient for customers. We offer quick turnaround on designing and manufacturing.

· The workshop has set up advanced production facilities in accordance with the quality system requirements of ISO9001. These high-efficient and reliable facilities have contributed a lot to guaranteeing quality product output. Our brand is popular not only in the domestic blood culture flask production machine market but also in the overseas markets. We have won trust from and established cooperations with customers from America, Oceania, Africa, the Middle East, etc.

· Our company demonstrates the commitment to sustainable development. From protecting natural resources to giving back to the community, we strive to be accountable to our employees, communities, and the planet.


Application of the Product

Multiple in function and wide in application, blood culture flask production machine can be used in many industries and fields.

HONGREAT provides comprehensive and reasonable solutions based on customer's specific situations and needs.


Enterprise Advantages

Our company has a team composed of young people born in the 1980s and 1990s. The overall team is young in mind and efficient in handling affairs. At the same time, we also have a good professional quality, which provides a strong power to push ourself forward continuously.

HONGREAT provides practical and solution-oriented services based on customer demand.

Our company always considers talents as one of the decisive factors for our sustainable development. We focus on talents management and cooperation, so a talent team is created to be the soul of our company. It is the motivation for the efficient development.

Set up in our company has abundant practical experience in this industry. Besides, we have mastered advanced industry technology.

At present, our company has not only established a huge sales network in China, but also actively strives to open up the international market.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
