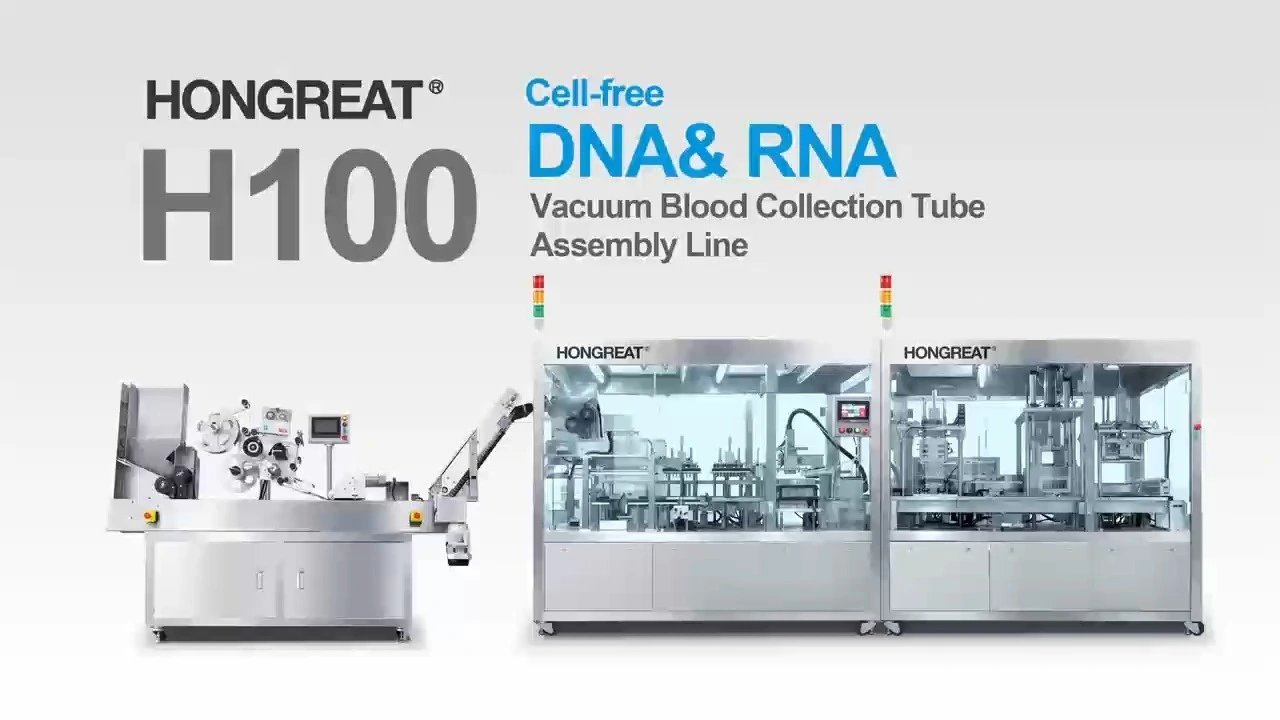

Full Automatic Cell free DNA/RNA Collection Tube Production Machine
As the demand for precise cell-free DNA/RNA testing increases in medical research, having reliable production equipment becomes essential. This automatic DNA blood collection tube making machine offers a high-capacity solution, producing 12,000 to 15,000 cell-free DNA/RNA blood collection tubes per hour. Designed for 13×100mm and 16×100mm tubes, the system efficiently manages the entire production workflow, ensuring consistent quality at every step. From precise additive dosing to vacuuming and accurate labeling, this assembly line is optimized for the specific needs of DNA/RNA collection tube production.
Fully Automatic Cell free DNA rNA Collection Tube Production Machine
|
Main Technical Parameters |
|
|
Production capacity |
12,000-15,000 pcs/h |
|
Tube size |
Ø13*100m, Ø16*100mm (available for PET, Glass), can be customized |
|
Cap size |
As per client samples |
|
Control way |
Touch screen operation, PLC Control |
|
Dosing system |
5 sets of precision syringe pump for DNA liquid solution: 100-900ul±6% (volume as per client's requirements) |
|
Detecting system |
CCD camera, check: A) label dirty/label damage/label printing, B) labeling tilt/double labeling/labeling height Automatic removal for unqualified products Reverse tube detection before additive dosing-spraying Alarm function in case of lack of foam tray storage. |
|
Vacuum degree |
0 ~ -95Kpa ±6% for vacuum tubes Numerical control for vacuum pressure, Frequency conversion control for vacuum pump Optional: online vacuum degree checking, to assure the vacuum during production |
|
Configurations |
1) Tube labeling 2) Tube loading + Reverse tube detection 3) DNA/RNA Liquid solution filling (5 nozzles) 4) Cap capping (with electric bowl or vibration bowl cap feeding) 5) NC vacuuming and cap-pressing 6) Foam tray or box loading |
|
Air consumption |
Max. 1m3/min; Air supply pressure P: 0.7Mpa≤P≤1Mpa |
|
Power |
20KW/AC380V |
Work Flow
Tube labeling -- Tube loading -- Reverse tube detection -- Chemical filling (cell-free DNA/RNA liquid solution) -- Cap adding -- Vacuuming -- Packing (loading into foam tray or box) -- Sealing and shrink packing -- Finished product.
features
• Precision ceramic syringe pump for chemical filling, 5 nozzles. Volume can be adjusted on screen.
• Vacuum-assisted cap picking: capping unit + vacuum suction. Different from traditional plunger type cap picking method, avoid cap missing due to plunger wear, stability and reliability can reach 99.99%, more stable and durable.
more than 20 years experience in manufacturing vacuum blood collection tube automatic production lines.
