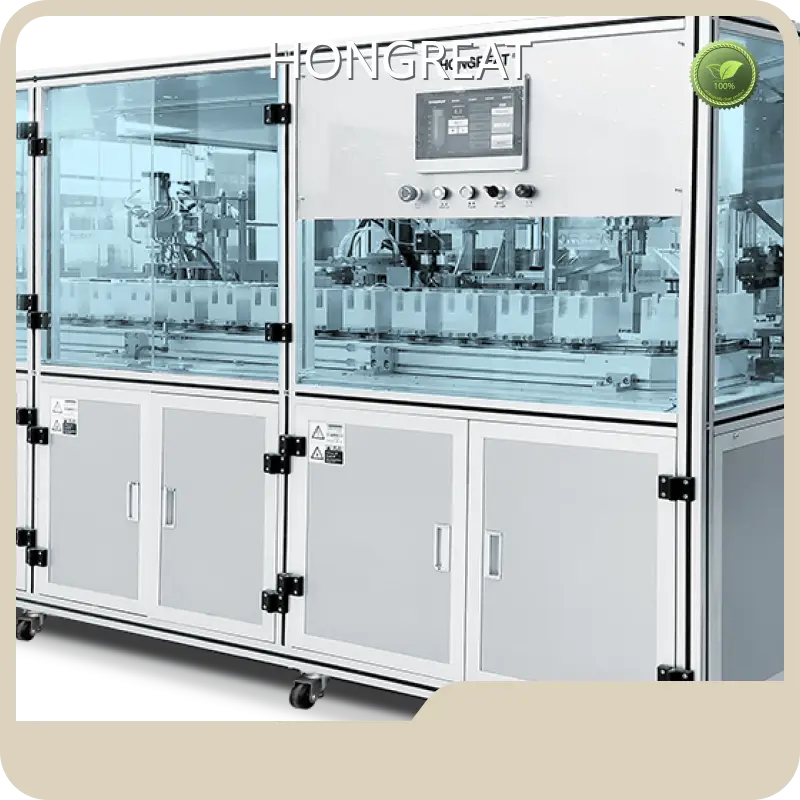

Blood Collection Tube Assembly Machine - - HONGREAT
Product details of the blood collection tube assembly machine
Product Information
HONGREAT blood collection tube assembly machine is designed to create an original look that is truly unique. This product meets the most stringent quality requirements and can be used for a long time. Due to its excellent characteristics, the product is applied widely in the global market.
Full Automatic DNA Blood Collection Tube Production Machine
|
Main Technical Parameters |
|
|
Production capacity |
12,000-15,000 pcs/h |
|
Tube size |
Ø13*100m, Ø16*100mm (available for PET, Glass), can be customized |
|
Cap size |
As per client samples |
|
Control way |
Touch screen operation, PLC Control |
|
Dosing system |
10 sets of precision syringe pump for DNA liquid solution: 100-900ul±6% |
|
Detecting system |
Automatic removal for empty tube without label Reverse tube detection before additive dosing-spraying Alarm function in case of lack of foam tray storage. |
|
Vacuum degree |
0 ~ -95Kpa ±6% for vacuum tubes Numerical control for vacuum pressure, Frequency conversion control for vacuum pump |
|
Configurations |
1) Tube loading + Reverse tube detection 2) DNA/RNA Liquid solution filling (10 nozzles) 3) Cap capping (with electric bowl or vibration bowl cap feeding) 5) NC vacuuming and cap-pressing 6) Tube labeling (automatic removal for empty tube, optional: CCD camera detection for liquid solution) 7) Foam tray loading |
|
Air consumption |
Max. 1m3/min; Air supply pressure P: 0.7Mpa≤P≤1Mpa |
|
Power |
20KW/AC380V |
Work Flow
Tube loading -- Reverse tube detection -- Chemical filling (cell-free DNA/RNA liquid solution) -- Cap adding -- Vacuuming -- Test tube labeling (automatic removal for empty tube) --Packing (loading into foam tray) -- Sealing and shrink packing -- Finished product.
Our advantage
• Precision ceramic syringe pump for chemical filling, 10 nozzle. Volume can be adjusted on screen.
• Vacuum-assisted cap picking: capping unit + vacuum suction. Different from traditional plunger type cap picking method, avoid cap missing due to plunger wear, stability and reliability can reach 99.99%, more stable and durable.
more than 20 years experience in manufacturing vacuum blood collection tube automatic production lines.
